凸輪軸、凸輪軸襯套、凸輪軸齒輪

John Deere約翰迪爾強鹿柴油發(fā)動機凸輪軸、凸輪軸襯套、凸輪軸齒輪配件銷售維修維護技術(shù)零件資料手冊

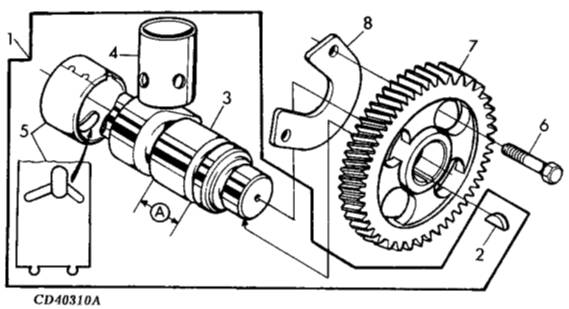

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 RE55901 KIT 1 X (ALSO ORDER TY6333) INCL INSTRUCTIONS

2 26H72 SHAFT KEY 1 X 1/8" X 5/8"

3 .................. CAMSHAFT 1 X A = 40MM, MARKED R115335, ORD RE55901

4 T20073 TAPPET 8 X

5 R119874 BUSHING AR X

6 19H2676 CAP SCREW 2 X 3/8" X 1", (SAE 8)

7 T20070 HELICAL GEAR 1 X Z = 48

8 T20072 PLATE 1 X
